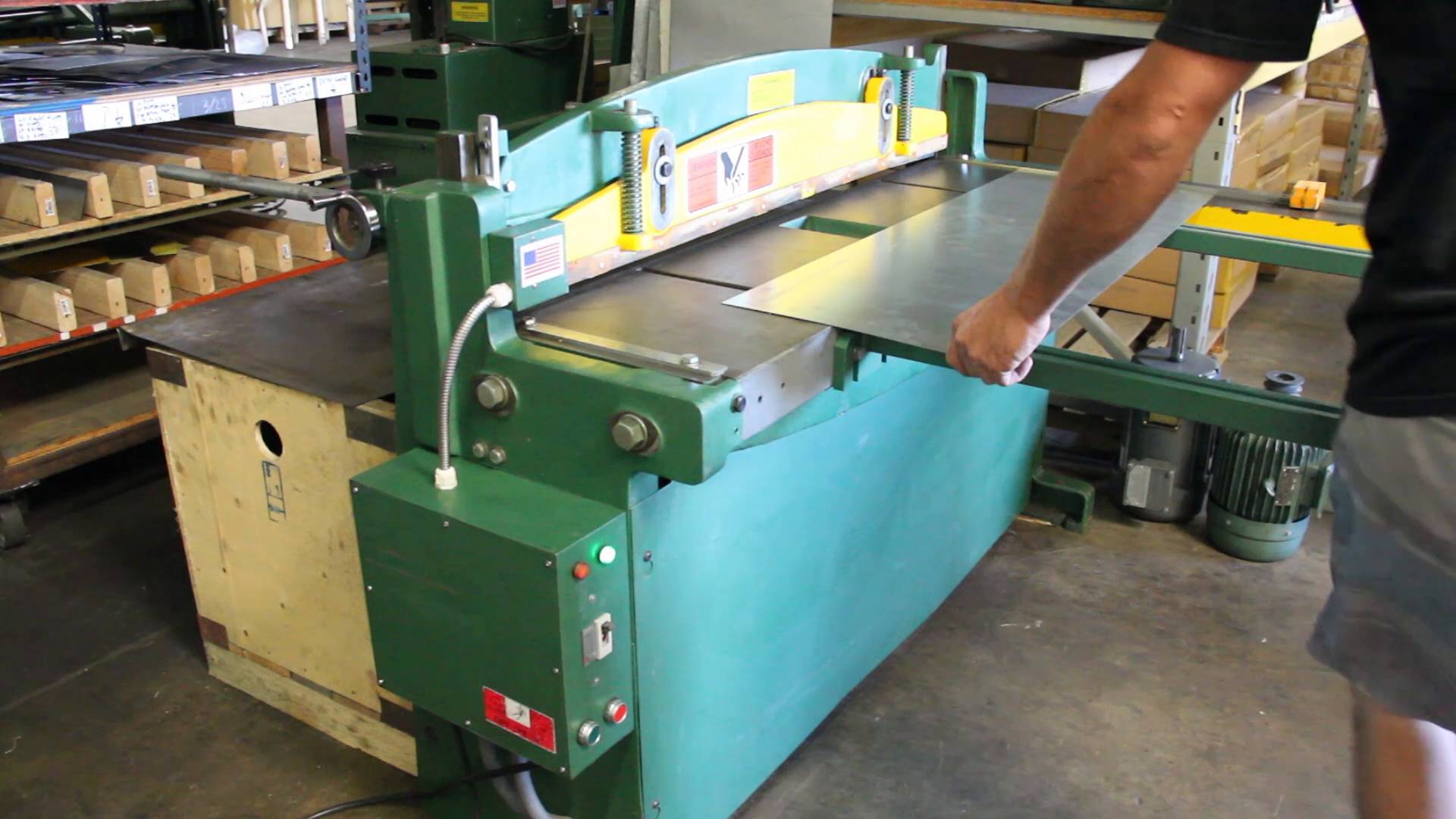

TK 1652 Hydraulic Shear
The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action, rear operated parallel rack and pinion back gauge, reversible 4 ft. squaring arm with embedded scale and 3 drop stop gauges. Also includes one shot lube system. No one offers a 52″ x 16 gauge Hydraulic Shear with greater value. Pay less and get more!
TK 1625 hydraulic shear
- Weight: 1350 lbs.
- Dimensions: 72 x 48 x 36 in.
- Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
- Maximum shearing capacity, stainless steel: 20 ga. / 1,0 mm
- Maximum cutting length: 52 in. / 1320 mm
- Back gauge range: 30 in. / 762 mm
- Front gauge range: 37 in. / 940 mm
- Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
- Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm
